JCD150 Full Hydraulic Diamond Core Drilling Rig for Wireline Diamond Drilling

Name: JCD150 Full Hydraulic Diamond Core Drilling Rig for Wireline Diamond Drilling
Brand: Beijing Jincheng Mining Technology Co., Ltd.
SKU: JCD150
Price: 122.00 USD
Availability: InStock

Nom De Marque:	JCDRILL
Numéro De Modèle:	JCD150
Nombre De Pièces:	1 ensemble
Prix:	Négociable
Conditions De Paiement:	LC, T/T, D/A, D/P, Western Union
Capacité à Fournir:	20 ensembles par mois

Informations détaillées

Description du produit

Informations détaillées

Lieu d'origine:

Shandong, Chine

Certification:

Capacité de forage:

BQ, NQ, QG

Profondeur de foret:

200 m (BQ), 150 m (NQ), 120 m (QG)

Marque de moteur en option:

Cummins, Weichai et Yuchai

Vitesse nominale:

500 tr/min

Couple:

850N.M.

Coup d'alimentation:

2000 mm

Capacité de levage:

400-500 kg

Modèle de pompe à boue:

BW-160

Couler:

160L / min

Capacité d'approvisionnement:

20 ensembles par mois

Mettre en évidence:

full hydraulic diamond core drill rig

wireline diamond drilling rig

hydraulic core drill rig with warranty

Description du produit

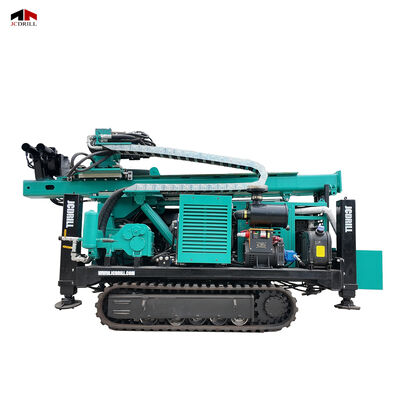

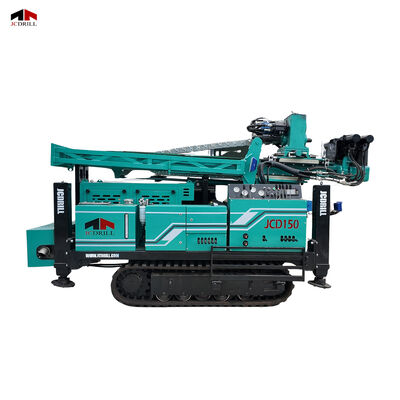

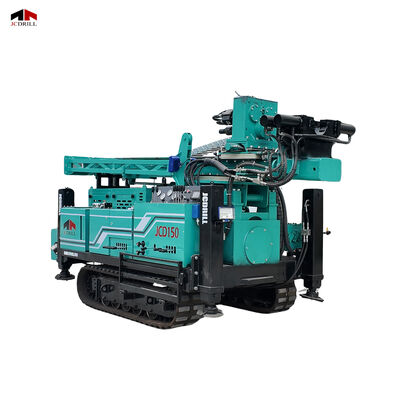

JCD150 Full Hydraulic Diamond Core Drilling Rig

Compact, full hydraulic portable drilling rig designed for geological exploration in remote and hard-to-access areas. Optimized for wireline diamond coring, it efficiently operates in unconsolidated layers, clay, sand, and rock formations.

Technical Specifications

Specification	Unit	JCD150
Drill system and operation		Hydraulic
Hole Diameter	mm	BQ NQ HQ
Hole Depth	m	200,150,120
Dimension	mm	275015001650
Weight	Kgs	2300
Winch
Lifting force of hoist	Kgs	400-500
Length of steel wire rope	m	50
Speed		adjustable
Rotation
Rotation Torque	Nm	850
Rotation Speed - adjustable	rpm	500
Rotary Head Swing out		Mechanical swing out
Feed & Mast
Feed Stroke	mm	2000
Drill pipe Length	mm	1500-2000
Control-Mast		Mast compensation, two cylinder clamp
Mud pump
Model		BW160 Hydraulic driven
Flow rate	L/Min	160
Pressure	Bar	8
Engine
Diesel Engine type		HUADONG
Engine Model		HD490
Rated Power	Kw/Hp	48/65
Cooling Method		Water/radiator/Fan
Optional Parts
Safety cage		On mast/removable
Engine		Yanmar 3TNV88
Hydraulic Clamp		5cylinder clamp

Key Features

Full Hydraulic Drill Head: Hydraulic pumps drive the drill head rotation and feeding cylinder system for smooth, full-stroke feeding at high and low speeds.
Centralized Control Console: All operations including feed, rotation, and lifting are managed from a single console, improving efficiency.
Directional Circulation: Equipped with a BW160 mud pump for slurry circulation, effectively removing cuttings from clay, sand, and rock layers.
Modular Fission Design: Split-type modules make the rig lightweight, portable, and operable in narrow spaces with flexible drilling angles from 45°-90°.
High Power Density Engine: HUADONG 40kW diesel engine (optional Yanmar 3TNV88 or Yuchai EU-5 76kW) provides stable performance with water-cooling, energy-saving, and low environmental impact.
Durable Hydraulic System: Mobile hydraulic components with integrated valve blocks reduce failure rates and operating costs.

Applications

Geological exploration in remote or confined areas
Quarrying and mining operations
Civil engineering and construction projects requiring core sampling
Suitable for unconsolidated soil, clay, sand, and rock formations

Frequently Asked Questions

What is the maximum drilling depth?
200m (BQ), 150m (NQ), 120m (HQ)
What types of cores can it drill?
BQ, NQ, HQ cores
Is it portable?
Yes, its modular fission design allows for easy transport and assembly in narrow spaces.
Can it operate in difficult geological conditions?
Yes, the rig supports hydraulic-driven directional circulation for efficient cuttings removal.
Are there customization options?
Optional dual hydraulic clamps, alternative diesel engines, remote control operation, and adjustable drill rotation speeds are available.
