Détails sur le produit:
|
| Numéro de modèle: | CWD600 | Profondeur de perçage: | 0-600m |
|---|---|---|---|
| Diamètre de perçage: | 90-450mm | LONGUEUR DE GARNITURE DE FORAGE: | 4.5m-6m |
| Utilisation: | Perçage de puits d'eau | METHOLD DE FORAGE: | Perçage de DTH et perçage de boue |
| Vitesse de rotation: | 0-100rpm | Puissance de moteur: | 132Kw |
| GARNITURE DE FORAGE: | 89/102/114mm | POMPE DE MUD: | BW250/BW160 |
| Garantie: | 1year | Marque de moteur: | Cummins |
| Classabilité: | 21° | Retirez la capacité: | 32TON |
| Surligner: | Foreuse de forage de puits d'eau,plate-forme de forage de forage de roche,plate-forme de forage du forage 600meters |
||

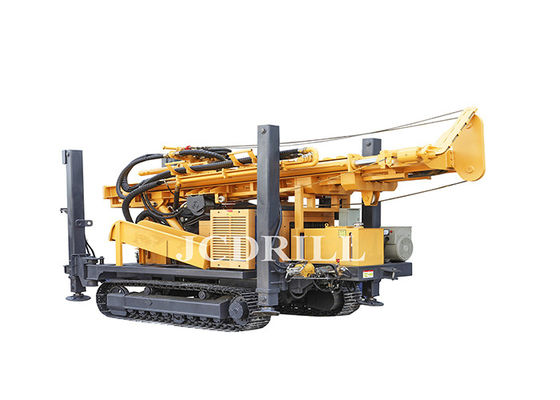

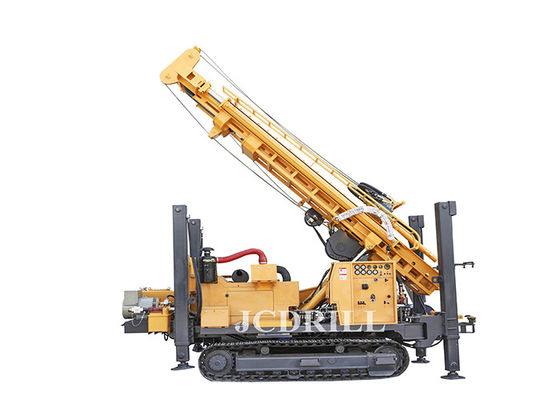

CWD600 Rock and Water Well Drilling Machine for Drilling Water Well
The efficiency of crawler type water well drilling rig CWD600 is ten times higher than that of traditional rotary drilling rigs, and the economic benefits created for users are extremely considerable. In particular, it solves the difficulty in drilling the soil layer with air DTH hammer, and the construction problem of the rotary drilling rig in the hard rock layer, gravel and pebble layer. It can work efficiently under various geological structures and realize the perfect combination of water drilling and air drilling.
| 1 | Geology drilled | All kinds | |
| 2 | Drilling Type | DTH & Mud Rotary | |
| 3 | Drill system and operation | Hydraulic | |
| 4 | Hole Diameter | mm | Φ140—Φ450 |
| 5 | Hole Depth | m | 600 |
| 6 | Rotation Torque | Nm | 6500 1st Gear |
| 13000 2nd Ger | |||
| 7 | Rotation Speed | rpm | 0-80 1st Gear |
| 0-160 2nd Ger | |||
| 8 | Drill pipe diameter | mm | 89/102/114 |
| 9 | Drill pipe length | mm | 4000/4500 |
| 10 | Axial pressure | T | 10 |
| Winch | |||
| 11 | Max. Lifting force | T | 32 |
| 12 | Lifting force of Main winch(Optional) | T | 4 |
| 13 | Lifting force of hoist | T | 1.5 |
| 14 | Length of steel wire rope(tool winch) | m | 100 |
| 15 | Lifting height of tool winch | m | 8 |
| Engine | |||
| 16 | Diesel Engine type | CUMMINS | |
| 17 | Rated Horse power | Kw | 132 |
| 18 | Electrical System | 24 | Volt |
| Compressor required | |||
| 19 | Compressor Type | Rotary Screw/Movable | |
| 20 | Pressure Required | Mpa | 1.05—6.9 |
| 21 | Air consumption | m³/min | 16—96 |
| Mud Pump(Optional) | |||
| 30 | Type | Hydrulic | |
| 31 | Model | BW450 | |
| 32 | Stroke | mm | 110 |
| 33 | Displacement | L/Min | 450 |
| 34 | Discharge pressure (Mpa) | Mpa | 2-3 |
| 35 | Suction tube diameter | mm | 89 |
| 36 | Discharge pipe diameter | mm | 51 |
| 37 | Liner Diameter | mm | 80 |
| Dimension | |||
| 38 | Net Weight | T | 15 |
| 39 | Shipping Length | mm | 8500 |
| 40 | Shipping Width | mm | 2300 |
| 41 | Shipping Height | mm | 3300 |
| 42 | Ground Clearance | mm | 300 |
Application
Service
In our after sales service system, We establish perfect control system strictly according to ISO-9000 series, in this system, technology date and problem solve solution and preventive measures will be provided in any maintain project, all the spare parts will be used in new OEM products with installation instructions, packing list, manufacturer's instruction, qualification and Warranty certificate.
We provide "one equipment & one case, endless service, namely the after sales service begin from the order confirmation, last for the working life of the equipment.
